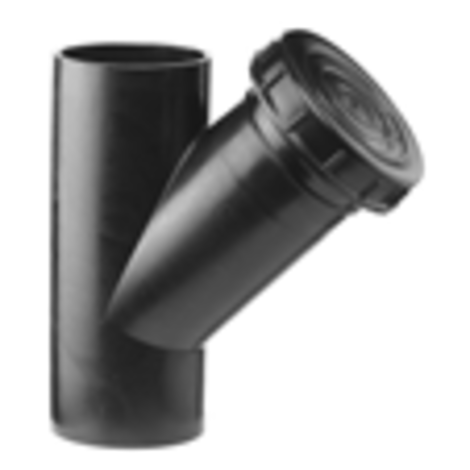

Clean out branch 45°
Clean out branches 45° can be applied in horizontal and vertical pipes.

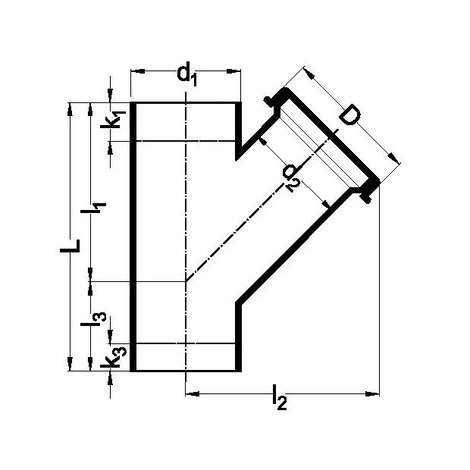

| Reference | D | L | Kg | d1/ | d2 | k3 | l1 | l2 | l3 |
|---|---|---|---|---|---|---|---|---|---|
| 331100 | 140 | 270 | 0,763 | 110 | 110 | 55 | 180 | 195 | 90 |
| 331200 | 140 | 300 | 0,92 | 125 | 110 | 25 | 200 | 200 | 100 |
| 331600 | 140 | 375 | 1,543 | 160 | 110 | 45 | 250 | 220 | 125 |
