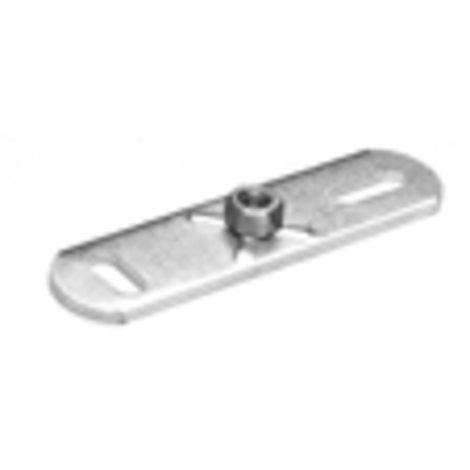

Mounting plate for guide bracket
For fixing to wall

Steel galvanised
Go back
Mounting plate for guide bracketFor fixing to wall
Reference d1 C R S Kg l1 l2 l3 l4
709410 40-160 8,5 M10 4 0,152 145 38 90 14
709480 200-315 8,5 1" 4 0,228 145 38 90 25
