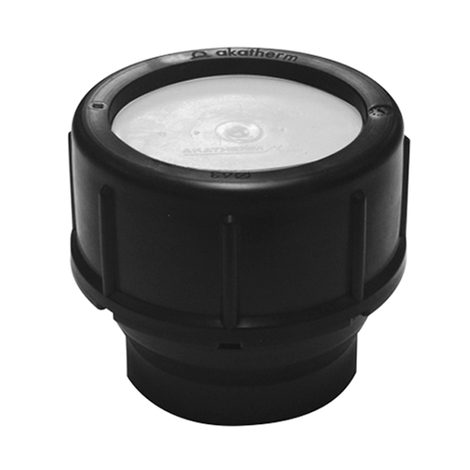

Screw coupler short
Complete with threaded piece, nut, pressure ring and sealing ring

Butt-weld only
Go back

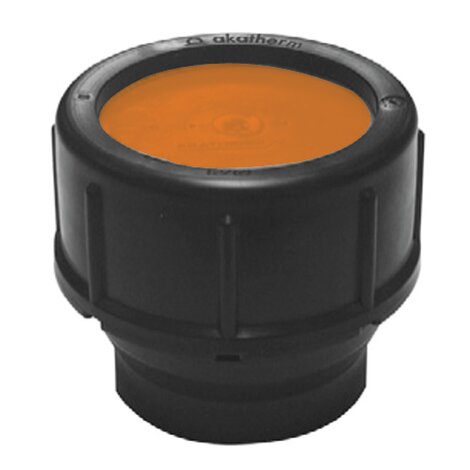

Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring

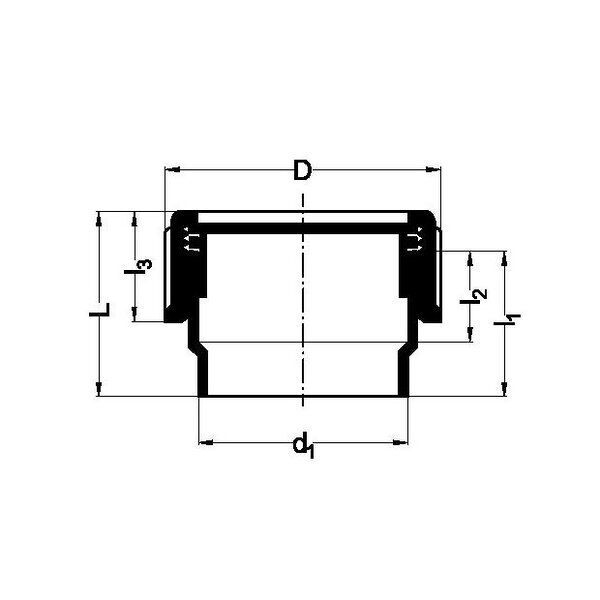

Reference d1 D L Kg l2 l3
1
430430
40 66 71 0,072 32 33
1
430530
50 76 71 0,078 32 33
1
430630
63 89 76 0,104 37 42
1
430730
75 103 81 0,15 37 44
1
430930
90 122 92 0,24 45 48
1
431130
110 148 97 0,392 49 62
1
435630
56 82 71 0,092 32 35
1 EPDM seal
