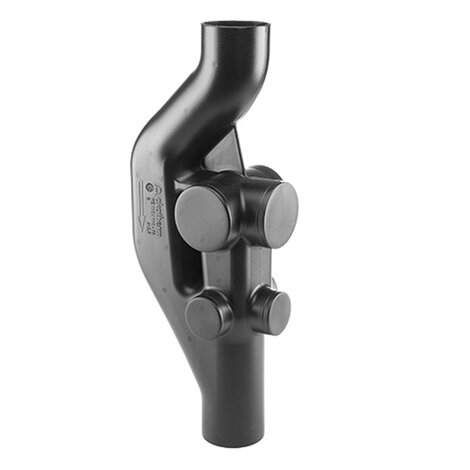

Stack-aerator

The stack-aerator is delivered with closed caps. After removing the caps, the required horizontal branches can be butt-welded directly to the stack-aerator. The horizontal branches can also be connected using plug-in sockets butt-welded to the stack-aerator. Plug-in sockets allow for easy assembly on-site and enable a transition from 110 mm dBlue for acoustic horizontal drainage or a standard uPVC 110 mm branch. Using snap-sockets a pull-tight connection can be created. An expansion socket on every level is mandatory to absorb any pipe expansion and have a tension-free stack-aerator. Inspection openings should be installed according to local regulation, we advise one on every level.

Go back

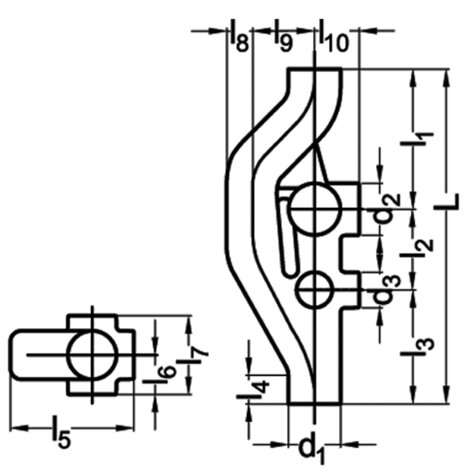

	Reference	L	Kg	d₁/	d2	d3	l1	10	l2	l3	l4	l5	l6	l7	l8	l9	q
¹	601117	705	4,85	110	110	75	295	94	170	240	60	279	89	178	55	130	14
¹	601617	750	4,85	160	110	75	330	119	170	250	60	339	114	228	80	140	14

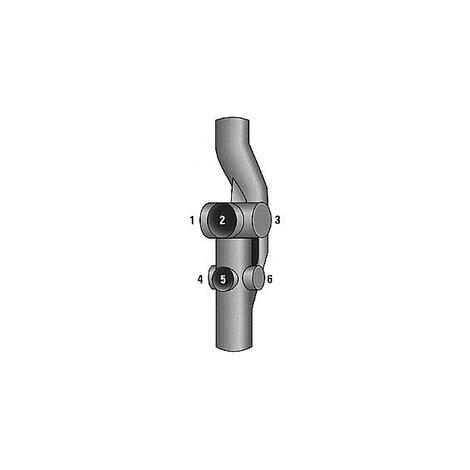

¹ 1/2/3 = max. Ø110 mm - 4/5/6 = max. Ø 75 mm - butt-weld only
