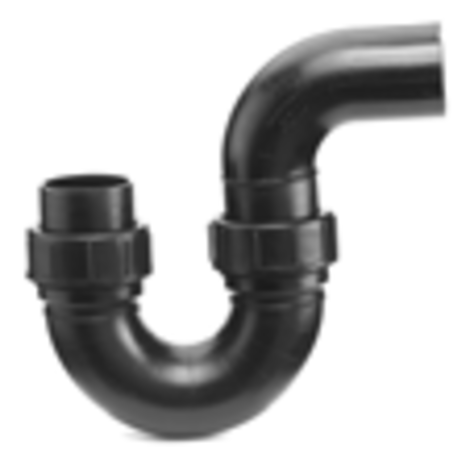

Universal trap with flange bushing
Larger diameters on request.
Possibilities for application: see illustration.

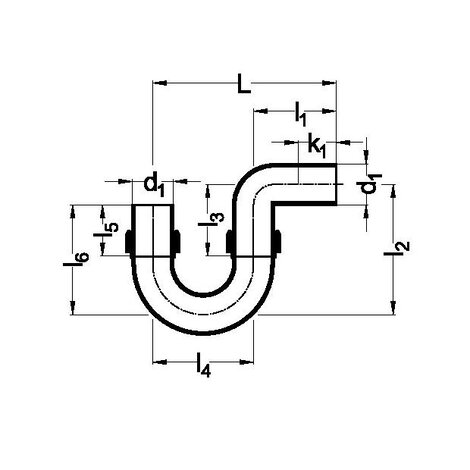

| Reference | d1 | L | Kg | k1 | l1 | l2 | l3 | l4 | l5 | l6 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 60609 | - | - | - | - | - | - | - | - | - | - |
| 1 | 70709 | - | - | - | - | - | - | - | - | - | - |
| 1 | 90909 | - | - | - | - | - | - | - | - | - | - |
| 1 | 111109 | 110 | 520 | 1,885 | 220 | 300 | 323 | 165 | 210 | 112 | 255 |
1 SBR seal
