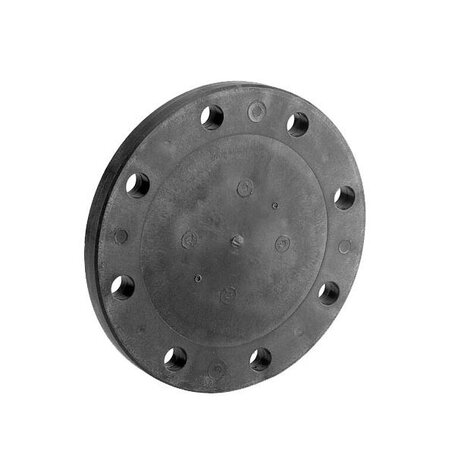

Blind flange PP ductile iron core

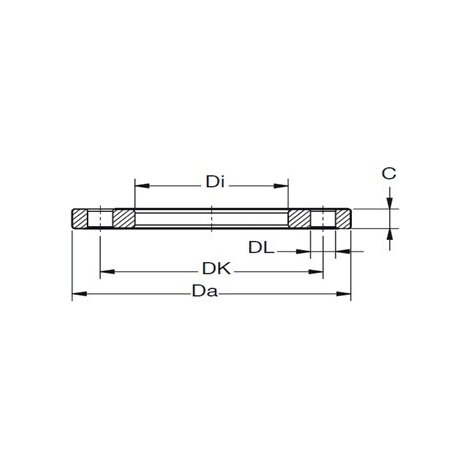

Dimensions according to DIN 2501 PN10
Blind flange PP ductile iron core are suitable for non-pressure applications.
n = number of bolts
M = thread
Reference circle PN10 EN 1092
| Référence | Système de verrouillage | DN | D | K | Kg | product.detail.attribute.price | b | d | d1/ | n | q |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 470485010 | TV | 32 | 140 | 100 | 0,8 | 47,44 | 16 | 18 | 40 | 4 | 1 |
| 470585010 | TV | 40 | 150 | 110 | 0,96 | 53,74 | 18 | 18 | 50 | 4 | 1 |
| 470685010 | TV | 50 | 165 | 125 | 1,16 | 58,50 | 18 | 18 | 63 | 4 | 1 |
| 470785010 | TV | 65 | 185 | 145 | 1,58 | 68,53 | 18 | 18 | 75 | 4 | 1 |
| 470985010 | TV | 80 | 200 | 160 | 1,82 | 75,44 | 18 | 18 | 90 | 8 | 1 |
| 471185010 | TV | 100 | 220 | 180 | 2,6 | 103,05 | 18 | 18 | 125 | 8 | 1 |
| 471685010 | TV | 150 | 285 | 240 | 4,86 | 159,66 | 24 | 22 | 160 | 8 | 1 |
| 472085010 | TV | 200 | 340 | 295 | 7,42 | 177,31 | 24 | 22 | 200 | 8 | 1 |
| 472585010 | TV | 250 | 400 | 350 | 14,04 | 231,72 | 30 | 22 | 250 | 12 | 1 |
| 473185010 | TV | 300 | 463 | 400 | 20,66 | 338,32 | 34 | 22 | 315 | 12 | 1 |
