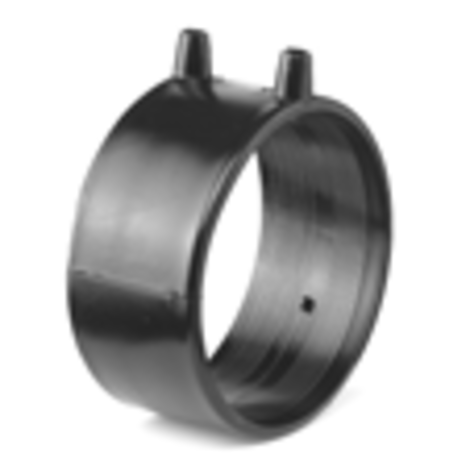

Electrofusion coupler
The electrofusion couplers are delivered with centre stops. These stops can easily be removed with a knife or screwdriver (200, 250, 315), so that the coupler can be used as a slide-coupler. Before welding, cut pipe ends squarely with a pipe cutting tool, remove the oxide film with a scraper and mark the insertion depth. The couplers can easily be welded with our Akatherm control box and other suitable control boxes.

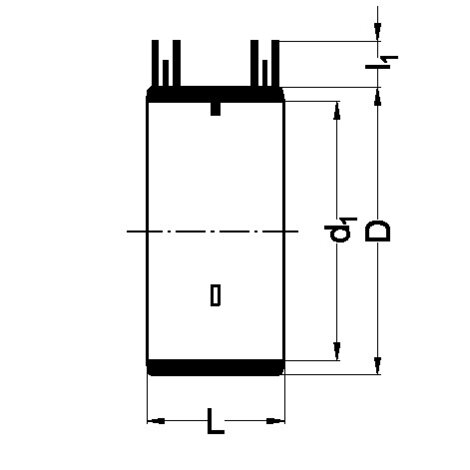

| Référence | d1 | D | L | Kg | l1 | Système |
|---|---|---|---|---|---|---|
| 410495 | 40 | 52 | 54 | 0,046 | 16 | 5A/80s |
| 410595 | 50 | 62 | 54 | 0,055 | 16 | 5A/80s |
| 410695 | 63 | 75 | 54 | 0,069 | 16 | 5A/80s |
| 410795 | 75 | 87 | 54 | 0,079 | 16 | 5A/80s |
| 410995 | 90 | 102 | 56 | 0,097 | 16 | 5A/80s |
| 411195 | 110 | 123 | 60 | 0,14 | 16 | 5A/80s |
| 411295 | 125 | 137 | 66 | 0,166 | 16 | 5A/80s |
| 411695 | 160 | 172 | 73 | 0,262 | 14 | 5A/80s |
| 412065 | 200 | 233 | 175 | 2,56 | 21 | 220V/420s |
| 412565 | 250 | 283 | 175 | 2,56 | 22 | 220V/420s |
| 413165 | 315 | 349 | 175 | 2,56 | 22 | 220V/420s |
| 415695 | 56 | 68 | 54 | 0,062 | 16 | 5A/80s |
