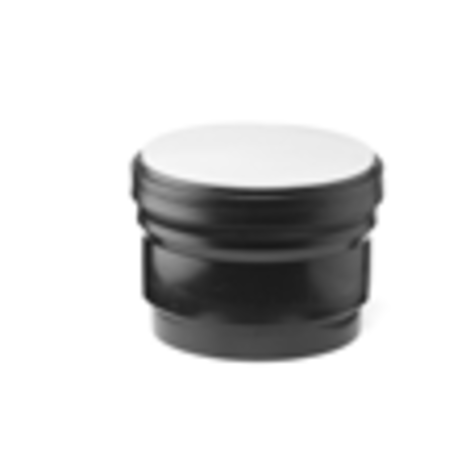

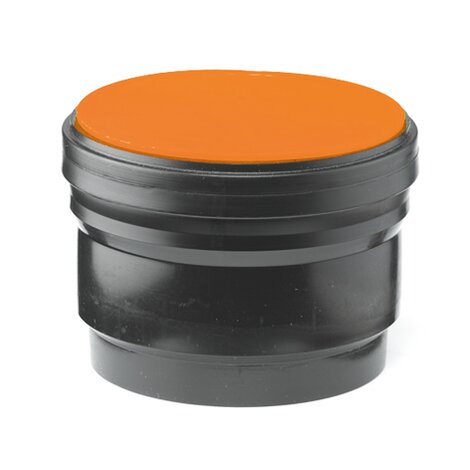

Snap socket
With protection plug

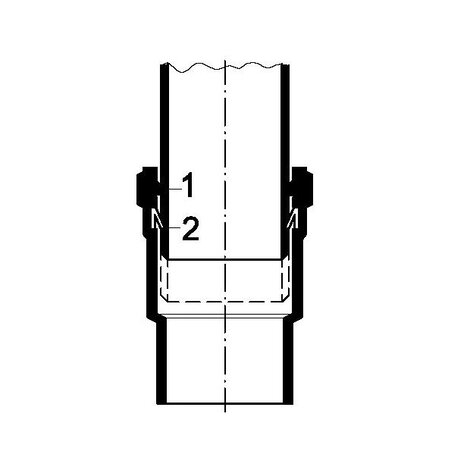

1 sealing ring2 snap ringThe snap socket can be used as a plug-in connection and a pull tight connection. The snap ring (besides the rubber sealing ring) provides the possibility to make a pull tight connection between pipe and snap socket, provided that a groove is cut into the pipe with a groove cutter (see chapter Tools). The pipe end should be pushed into the snap socket entirely.Butt-weld only

retour

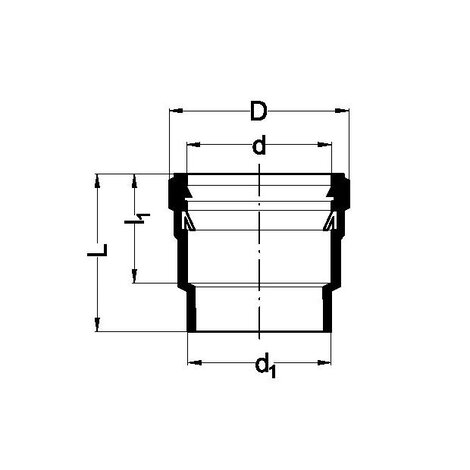

Référence	d1	D	L	Kg	d	l1
400410	40	55	73	0,04	41	55
400510	50	65	77	0,048	51	55
400610	63	78	90	0,074	64	70
400710	75	90	90	0,086	76	70
400910	90	110	90	0,116	91	70
401110	110	130	90	0,16	111	70
401210	125	150	94	0,209	126	70
401610	160	190	134	0,482	162	105
402010	200	230	155	0,859	202	125
