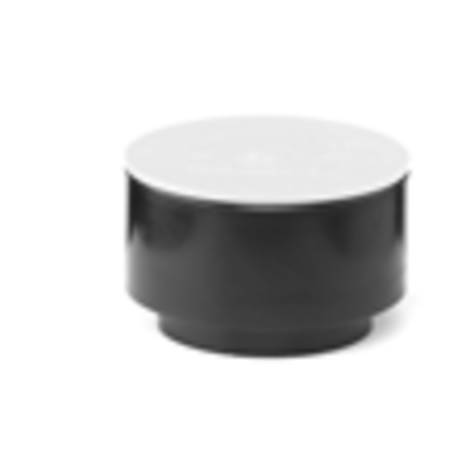

Trap connection socket
Butt-weld only
Trap connection socket connect in combination with rubber seal Code 51xx01 or 51xx02.

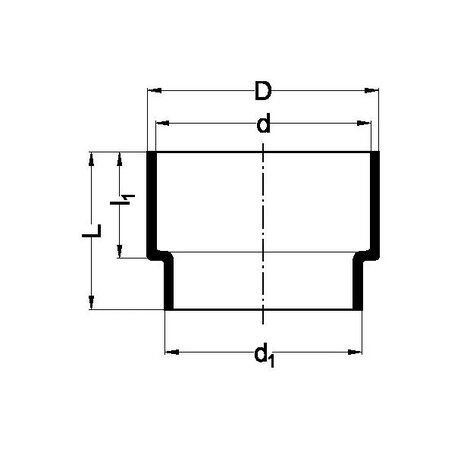

| Référence | d1 | D | L | Kg | d | l1 |
|---|---|---|---|---|---|---|
| 51 03 01 | - | 53 | 31 | 0,016 | 46 | 23 |
| 510401 | 40 | 53 | 30 | 0,016 | - | 24 |
| 510501 | 50 | 54 | 38 | 0,024 | - | 27 |
| 510502 | 50 | 66 | 50 | 0,034 | - | 39 |
| 515601 | 56 | 53 | 38 | 0,021 | - | 25 |
| 515602 | 56 | 64 | 46 | 0,03 | - | 32 |
