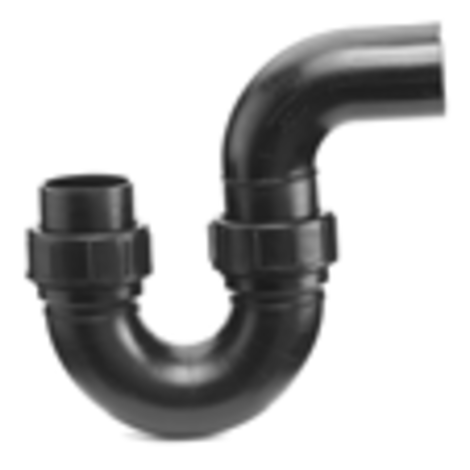

Universal trap with flange bushing
Larger diameters on request.

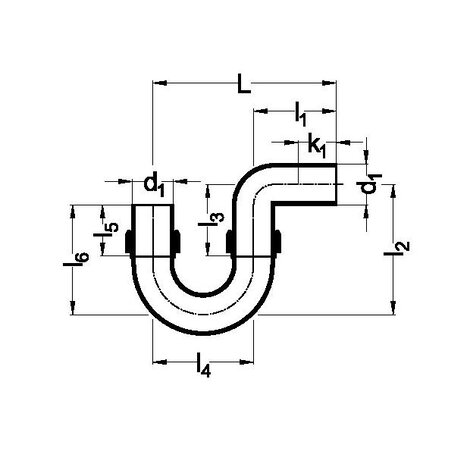

Possibilities for application: see illustration.
| Référence | d1 | L | Kg | k1 | l1 | l2 | l3 | l4 | l5 | l6 |
|---|---|---|---|---|---|---|---|---|---|---|
| 60609 | - | - | - | - | - | - | - | - | - | - |
| 70709 | - | - | - | - | - | - | - | - | - | - |
| 90909 | - | - | - | - | - | - | - | - | - | - |
| 111109 | 110 | 520 | 1,885 | 220 | 300 | 323 | 165 | 210 | 112 | 255 |
